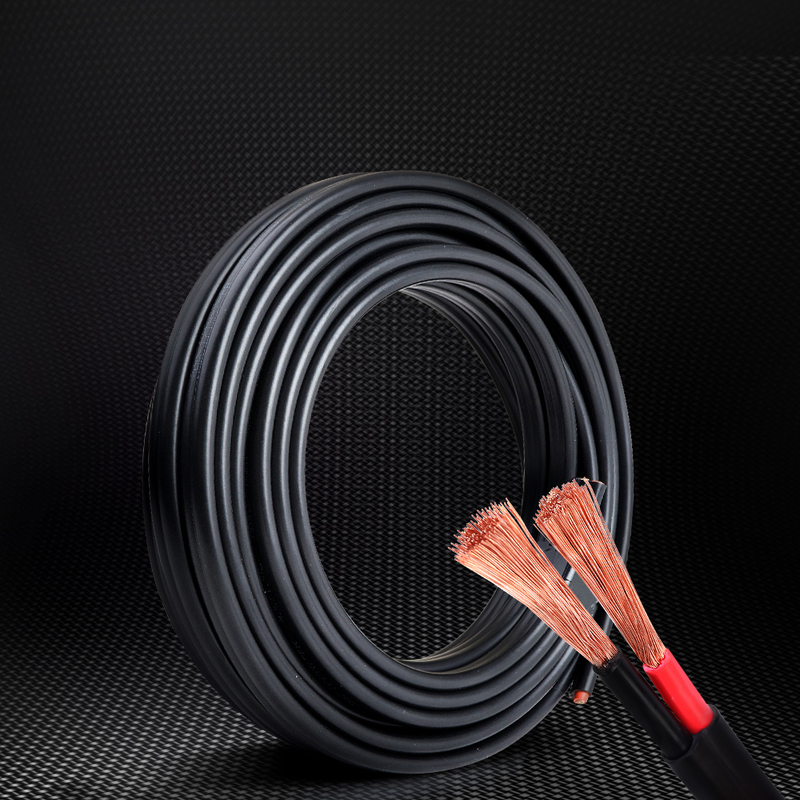

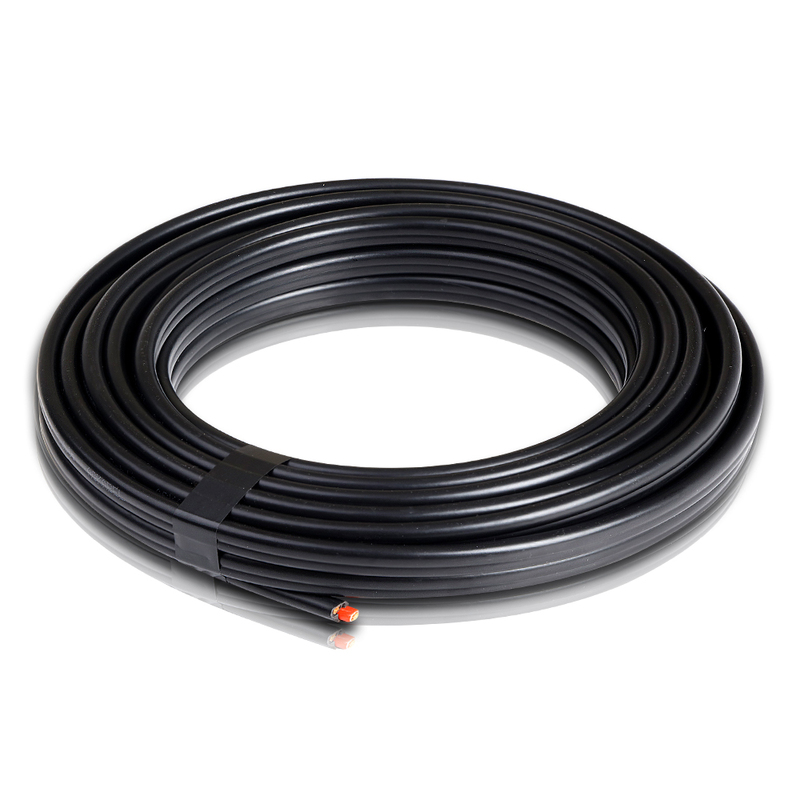

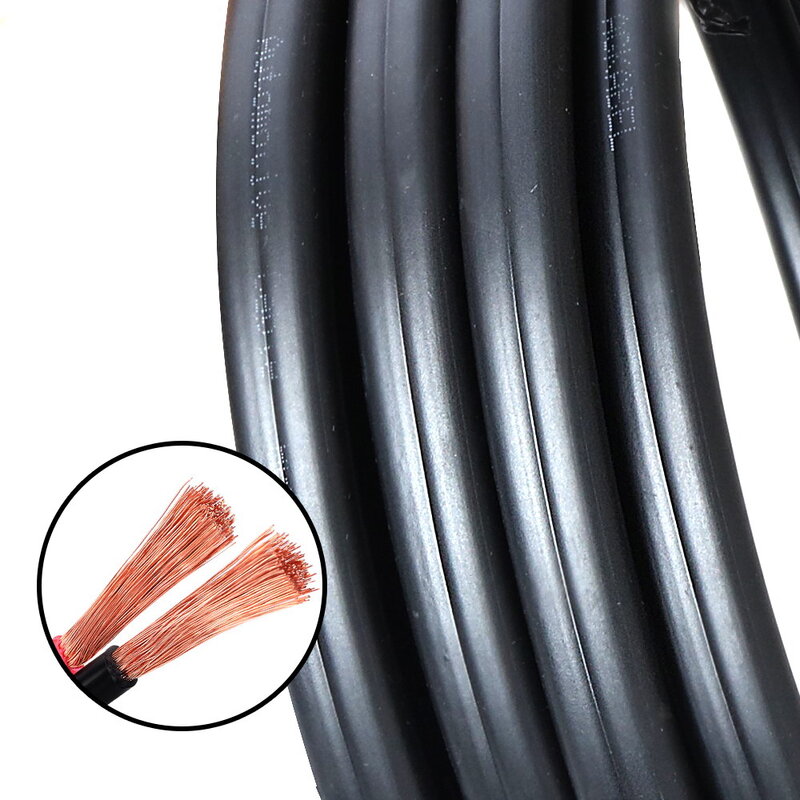

10M 6MM Twin Core Wire 2 Sheath Electrical Cable

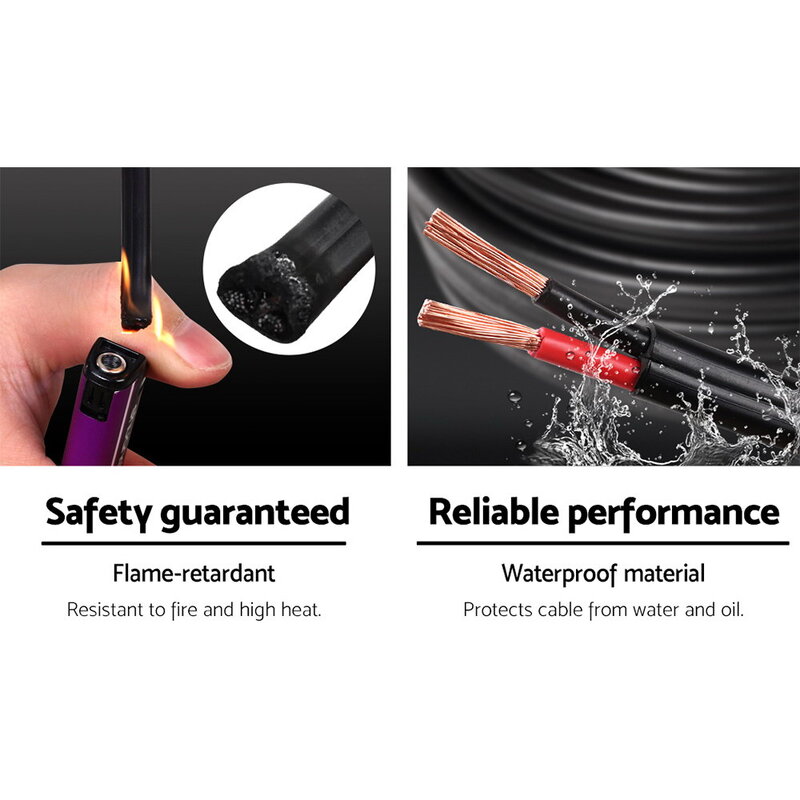

With its twin core design, our Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.
6mm twin sheath automotive cable

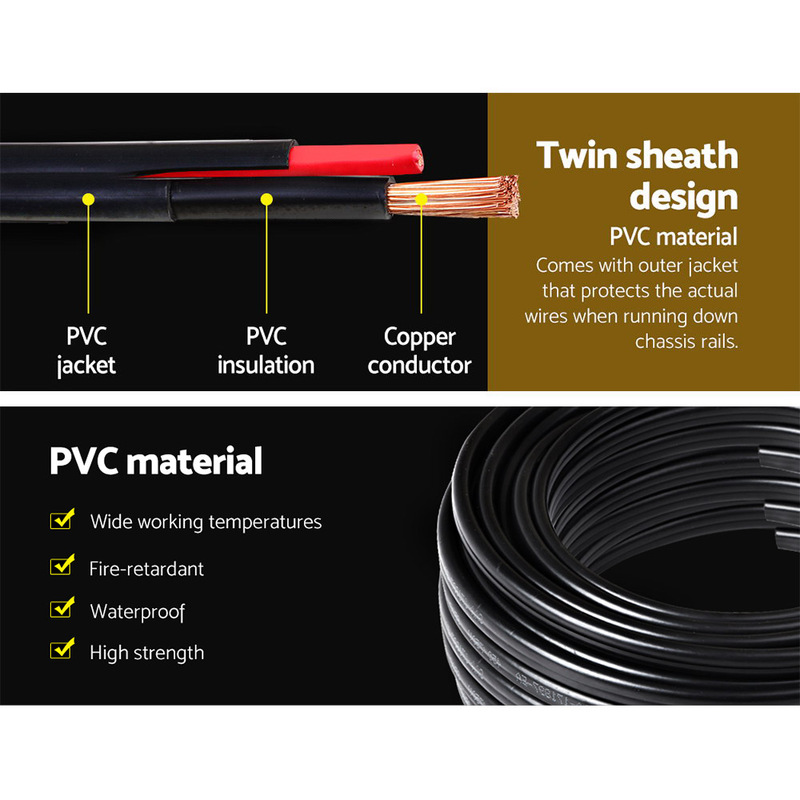

Oxygen-free copper core conductor
Reinforced PVC material
Can normally work up to 450V AC/DC
Conductor: Oxygen-free plain copper wire to AS/NZ 1125
Insulation: V90 PVC to AS/NZ 3808
Sheath: 5V90 PVC to AS/NZ 3808

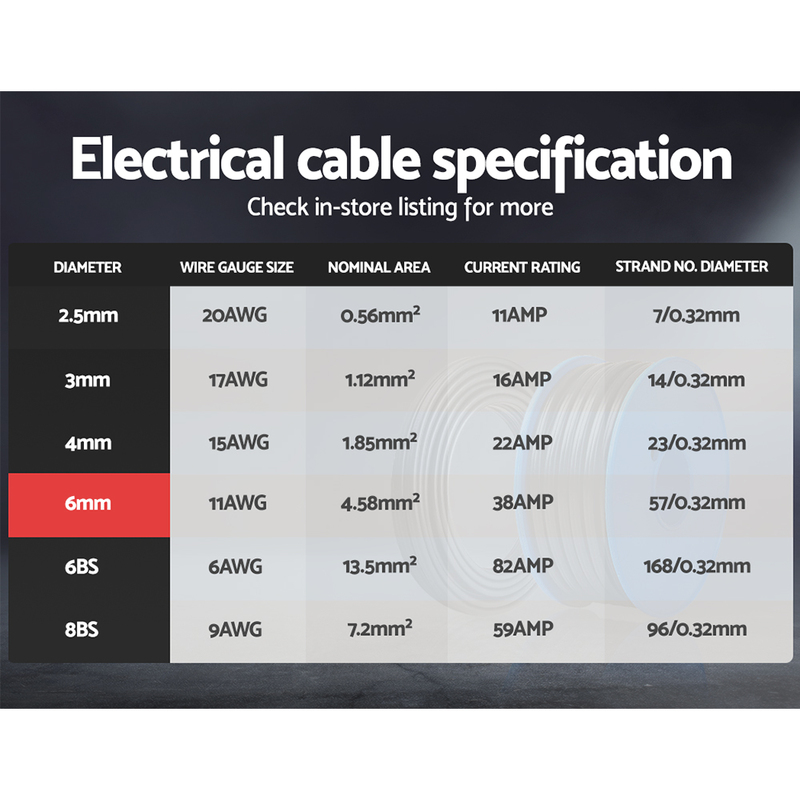

Amp rating: 38
No. of cores: 2
Cable Length: 10m
Industry Equiv. : 6mm
Strand no. diameter: 57/0.32mm
Nominal area: 4.59mm2
Nominal O.D.: 5.7mm x 9.6mm
Colour: Black sheathing
Conductor resistance <4.01Ω/Km(20℃)
Dielectric strength(kV/sec AC):2.5/60
Unaged acceptable tensile strength ≥ 12.5Mpa
Unaged acceptable ultimate elongation ≥130%
Package Content1 x Twin core cable
