Description

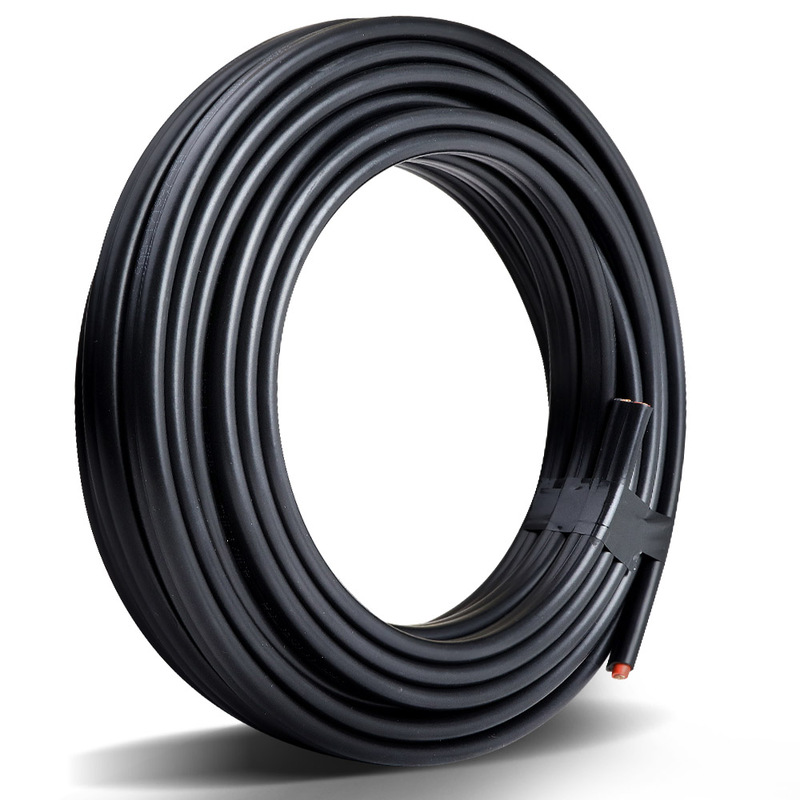

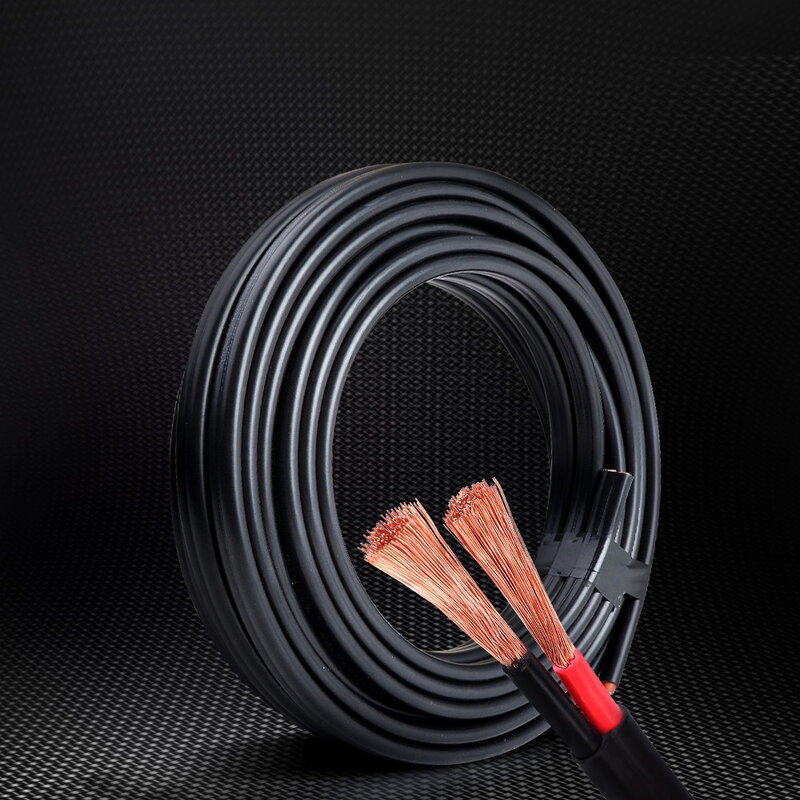

10M 8B&S Twin Core Wire 2 Sheath Electrical Cable

With its twin core design, our B & S Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. While ordinary wires has on average capacity, our B & S cable has a higher capacity. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.

Features
8B&S twin sheath automotive cable
Oxygen-free copper core conductor
Low eccentricity

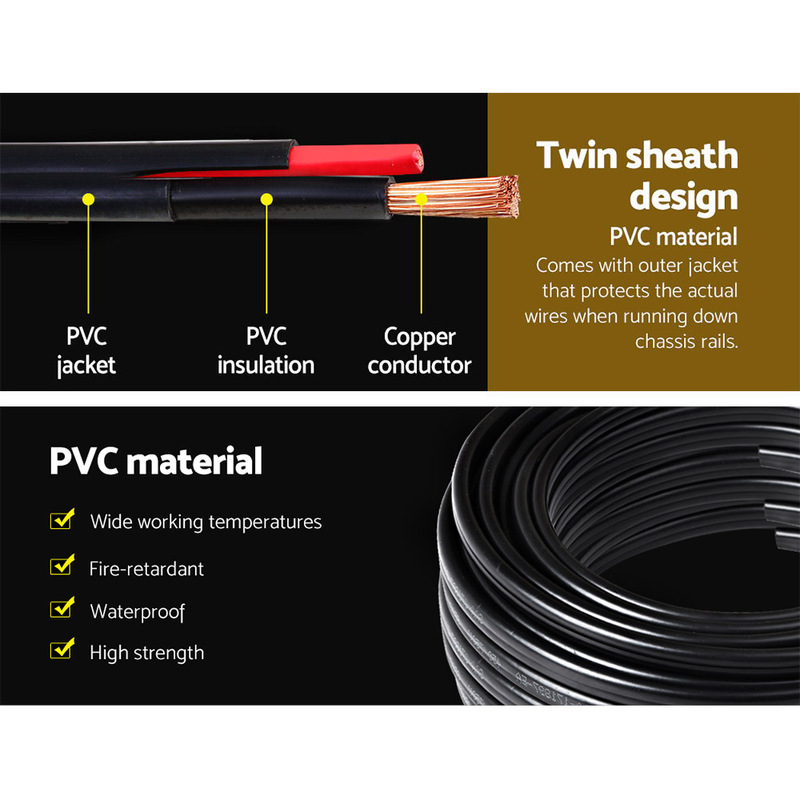

Reinforced PVC material
SAA-certified
Can normally work up to 450V AC/DC

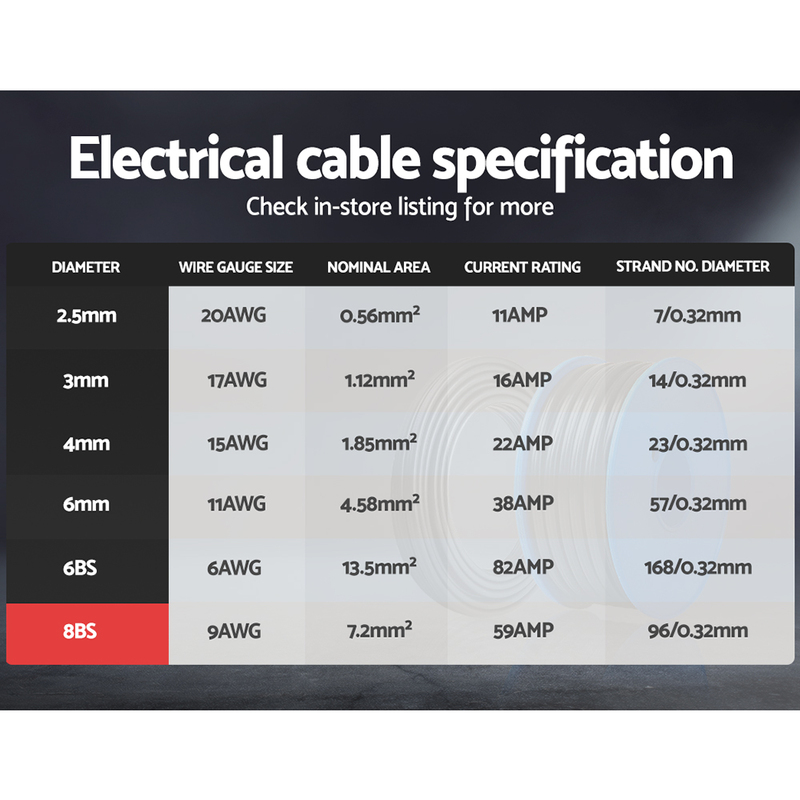

Specifications
Conductor: Oxygen-free plain copper wire to AS/NZ 1125
Insulation: V90 PVC to AS/NZ 3808
Sheath: 5V90 PVC to AS/NZ 3808
Amp rating: 59.2
No. of cores: 2
Cable Length: 10m
Industry Equiv. : 8B&S
Strand no. diameter: 96/0.32mm
Nominal area: 7.71mm2
Nominal O.D.: 7.1mm x 12.5mm
Colour: Black sheathing
Conductor resistance <2.38Ω/Km(20℃)
Dielectric strength(kV/sec AC):2.5/60
Unaged acceptable tensile strength ≥ 12.5Mpa
Unaged acceptable ultimate elongation ≥130%

Package Content
1 x Twin core cable
