Simplecom SA536 USB to M.2 and SATA 2-IN-1 Adapter for 2.5"/3.5" HDD & NVMe/SATA M.2 SSD with Power Supply USB 3.2 Gen2 10Gbps
SA536 is a 2-IN-1 USB adapter with SATA and M.2 sockets. This dual slot adapter is an all in one solution for most common storage drives, SATA socket supports 2.5" and 3.5" SATA HDD or SSD, M.2 socket supports both NVMe and SATA protocol based M.2 SSDs. With the toggle switch, you can quickly select between SATA and M.2 modes.
Plug and play and easy to use, this adapter lets you easily access and swap SATA or M.2 drives without having to install your drives into an enclosure or PC tower. USB 3.2 Gen 2 interface for super-fast read and write speed up to 10Gbps.
No need to worry about which type of SATA or M.2 drive you have, this adapter can convert any SATA or M.2 drive to USB for easy access on your computer. Perfect for fast access of all types of SATA HDDs and M.2 SSDs, and can be used for data migration, data backup and more.
This adapter comes with an external power supply, which enables the adapter to power and access desktop 3.5" SATA hard drive, and no external power needed for 2.5” SATA drive and M.2 SSD.
Features
- 2-IN-1 USB adapter with SATA and M.2 sockets
- Supports NVMe and SATA M.2 SSD

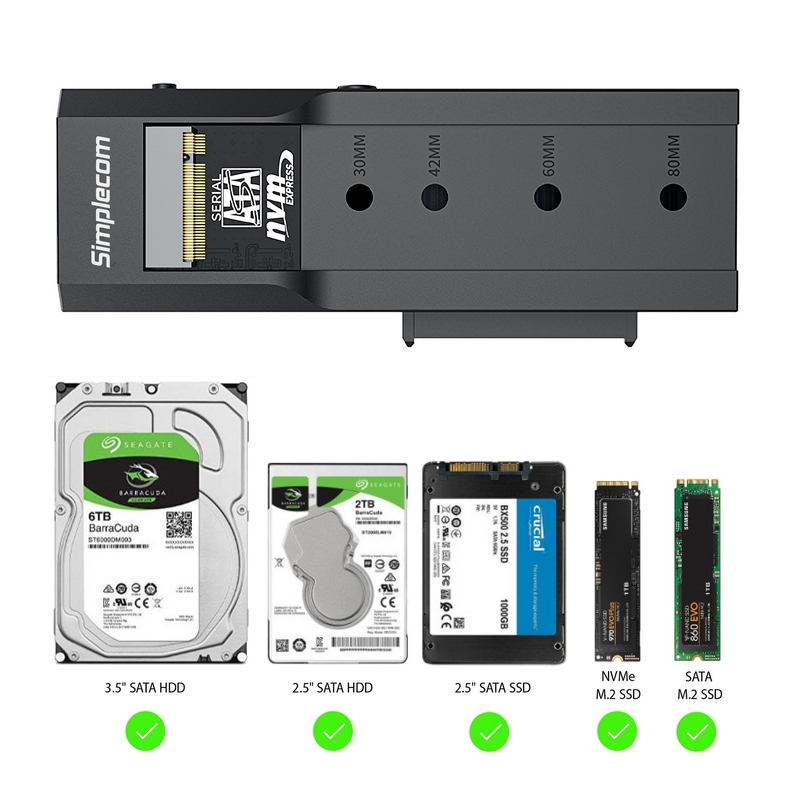

- Supports 2.5" and 3.5" SATA HDD/SDD with SATA I/II/III interface
- Toggle button to quickly switch between SATA and M.2
- USB 3.2 Gen2 interface support up to 10Gbps data transfer rate
- Plug and play, no driver required
- Supports USAP for faster data transfer speed and maximum performance
- Supports TRIM command for improved data writing to extend SSD life
- With external power adapter for 3.5" hard drives
- LED light indicates Power and Activity status
Specifications
- Model: SA536
- Interface: USB-C (USB 3.2 Gen 2)
- Transfer Rate: up to 10Gbps
- NVMe Slot Support: NVMe or SATA M.2 SSD (2230 / 2242 / 2260 / 2280)
- SATA Slot Support: 3.5" or 2.5" SATA HDD/SSD
- Main material: ABS Plastic
- Power Input: DC 12V2A
- Dimensions: 108 x 44 x 24mm (LxWxH)
- Weight: 49g (without power adapter)
- Supported Operating Systems: Windows 7 and above, Mac OS 10.8 and above
Package Contents

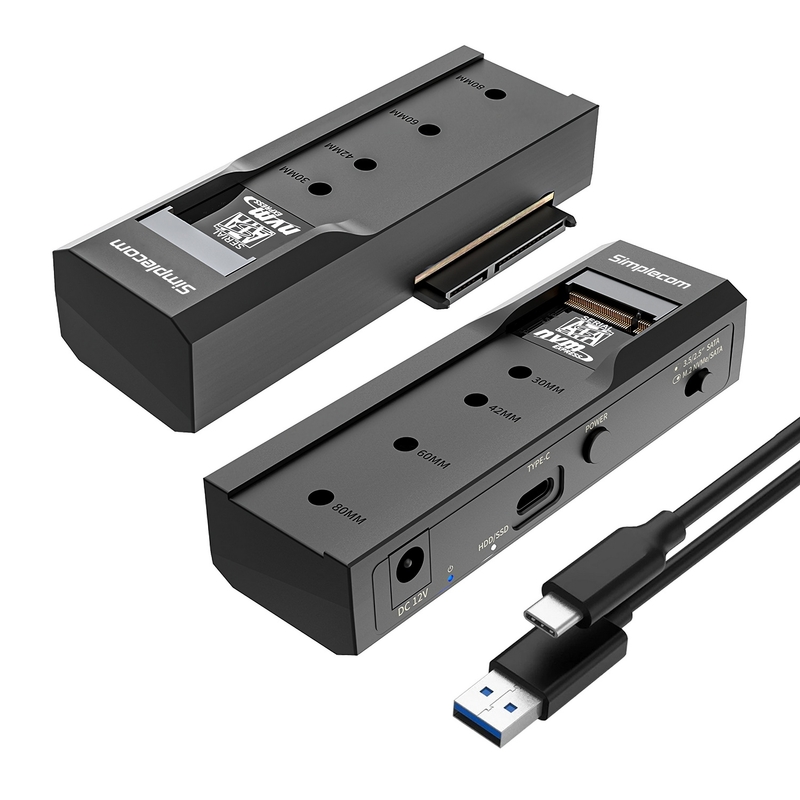

- 1x USB to SATA and M.2 Adapter
- 1x AC Power Adapter
- 1x USB-C to USB-A Cable
- 1x USB-C to USB-C Cable
- Rubber Standoff for M.2 SSD
- User Manual
Important Note
- External power is Not required when using 2.5" SATA drive or M.2 SSD, they can be powered by USB.
- External power is required for 3.5" SATA HDD, please connect USB cable before connecting power cable.
- SATA and M.2 sockets can't be used simultaneously, toggle button need to be selected to SATA or M.2 mode.
