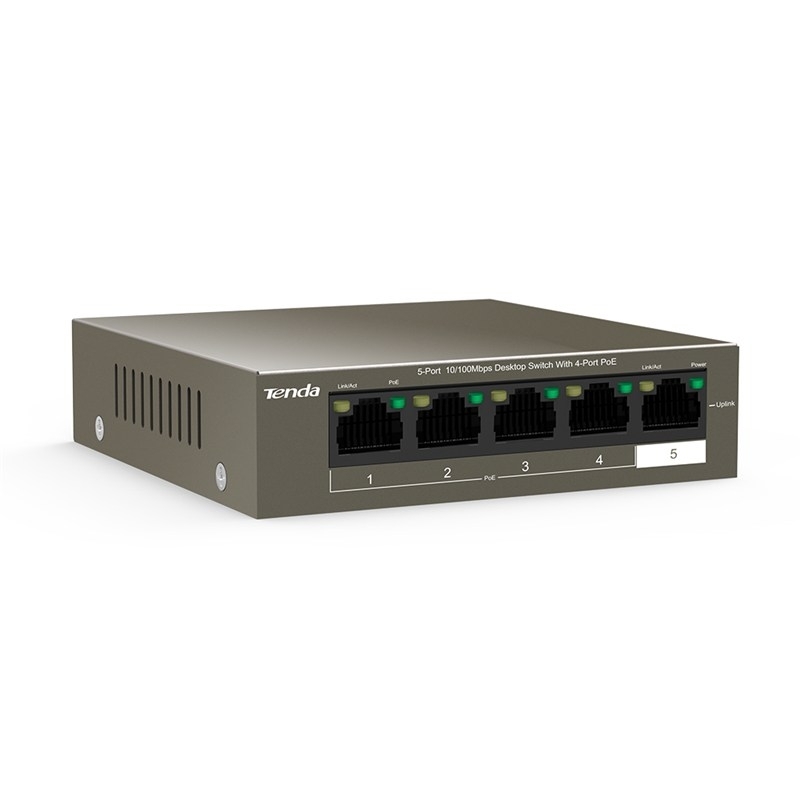

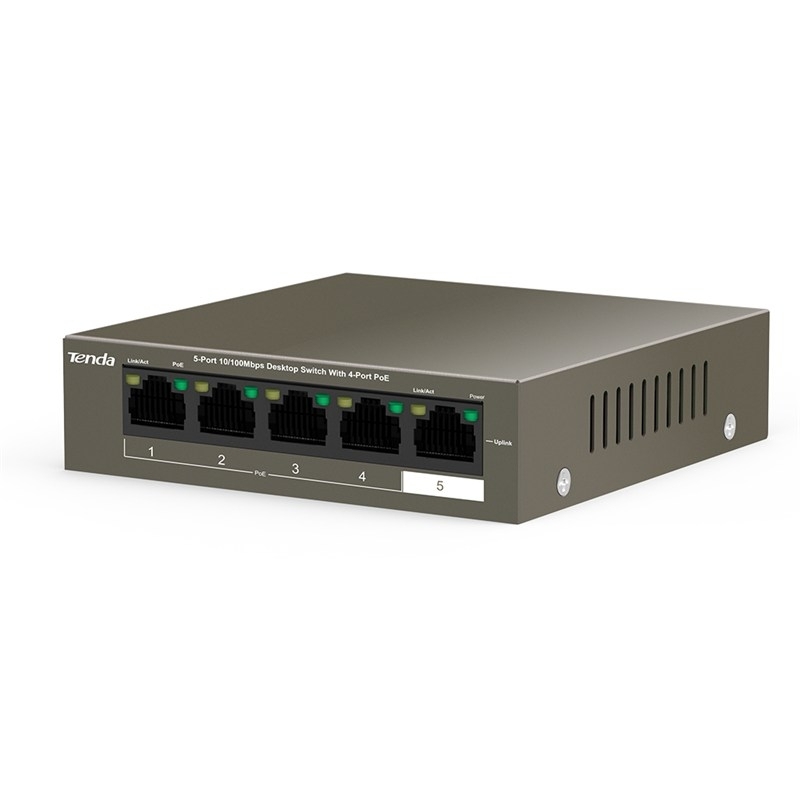

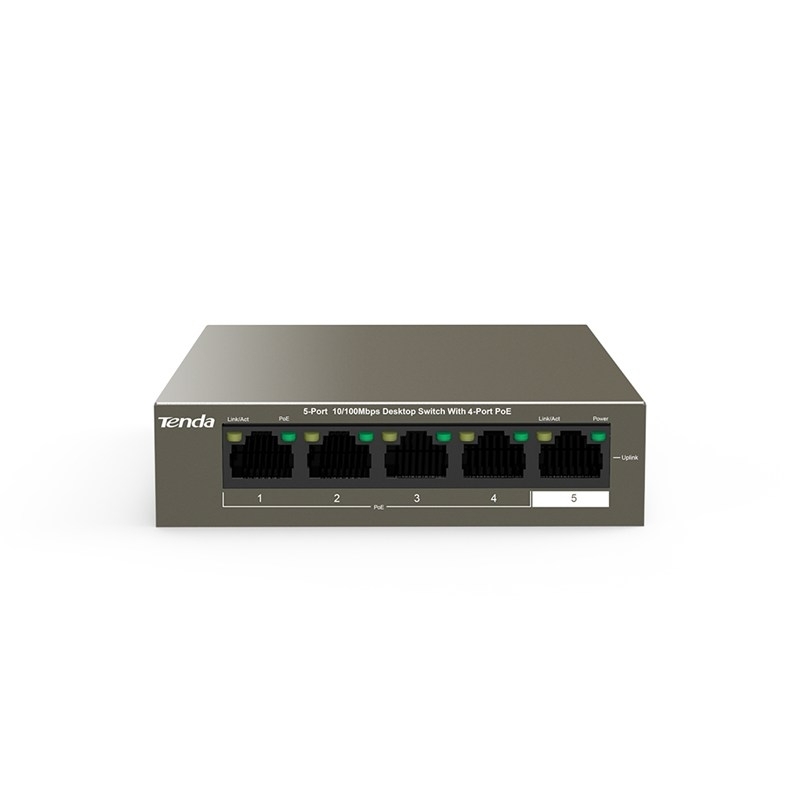

TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.

Standard & ProtocolIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Indicator5 × Link/Act per device
4 × PoE per device
1 × Power per device
Interface4 10/100Base-Tx ports(Data/Power)
10/100Base-Tx port(Data)
PortLightning Protection: 6KV
Store & ForwardYes
exchange capacity1 Gbps
Packet Forwarding Rate0.744Mpps
MAC Address Table2K
PoE supply managementPort 1 to Port 4 support IEEE802.3at/af PoE standard
PoE through pin1 2 4 5 +, 3 6 7 8 -
Power InputAC: 100-240V~ 50/60Hz
Dimension100×100×26mm ( W x D x H )
Power Consumptionin full configuration:<63W
PoE Max Power Supply: 58W
Ports featureStandard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Product Contents:
1 x Tenda TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
