SKU: BO20-DS-69239
Description

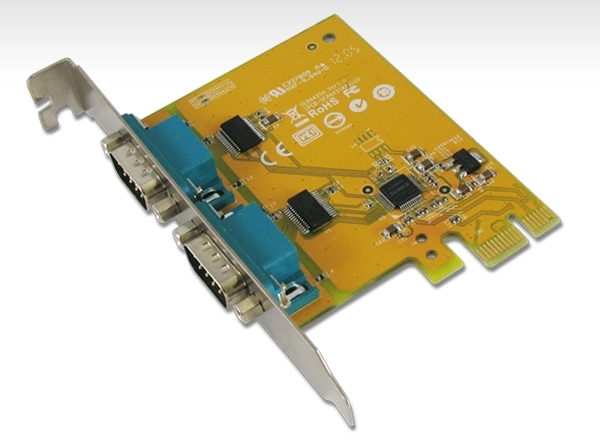

Sunix PCIE 2 Port Serial Card Full Height Expansion RS-232 - It is compatible with PCI Express x1, x2, x4, x8 and x16 lane General Interface RS-232 Controller SUNIX SUN2212 PuLao (16C950 UART Compatible) BUS PCI Express Spec 2.0, Single-Lane (x1) IRQ & IO Assigned by System Serial Communication Interface RS-232 No. of Port 2-port FIFO 128byte Hardware Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI Baud rate 50bps ~ 115.2Kbps Stop bit 1, 1.5, 2 Parity even, odd, none, mark, space Flow Control None, Xon/Xoff, RTS/CTS Protection ?15KV ESD protection for each signal Human Body Model (HBM) ?15KV IEC1000-4-2 Air Gap Discharge ?8KV IEC1000-4-2 Contact Discharge PCB Connector DB9 Male Driver Support Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64) Windows Server 2003 / 2008 / 2012 / 2016 (X64) Windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 Linux Linux 2.x / 3.x / 4.x / 5.3 DOS DOS *UNIX FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris *IBM OS/2 WARP 3/WARP 4 '*' marked as a project supported operating system. Please contact us if you have any further need. Regulatory Approvals Hardware CE, FCC, VCCI, BSMI Software Microsoft WHQL Windows Microsoft Client: XP / Vista / 7 / 8.x / 10 (X86/X64) Microsoft Server: 2003 / 2008 / 2012 / 2016 (X64) Environment Operation Temperature 0 to 60?C (32 to 140?F) Operation Humidity 5 to 95% RH Storage Temperature -20 to 85?C (-4 to 185?F) Dimension PCB Dimension 65 x 88 mm Bracket Standard 121 mm Bracket Space 1
Pickup & Delivery
- You are most welcome to collect your order from our warehouse at 1/191 The Horsley Drive Fairfield NSW 2165 (Entry from Tangerine Street).
- You need to place your order online first and make sure you have received confirmation that your order is ready for pick-up before coming in. Please note that we require up to 2-3 business days to process your order.
- Free shipping is only available to select post codes and may not include certain far regional areas, to check eligibility enter post code into shipping calculator.
- Provide us with your correct delivery address and contact details
- Please make sure someone is at home from 7 am - 7 pm on the delivery day. if you believe an alternative address is more convenient to deliver the item then please make sure you change the address at eBay checkout.
- Delivery guy will require an assistant to unload heavy items of his vehicle. Our delivery guys only deliver at property entrance on ground level.
- We do not ship to PO boxes and surrounding islands.
For all metropolitan areas allow between 2-7 working days for delivery and for all non-metropolitan areas allow between 5-10 working days.
After ordering online, you will receive an email confirmation from Bargains Online containing your receipt of payment details (if you have provided your email address). We will also normally confirm receipt of your order soon after ordering.
SUNIX PCIE 2 Port Serial Card Full Height Expansion RS-232 - It is compatible with PCI Express x1, x2, x4, x8 and x16 lane
Don't Pay $222.00
$132.00
SAVE $90
- Out Of Stock
