Description

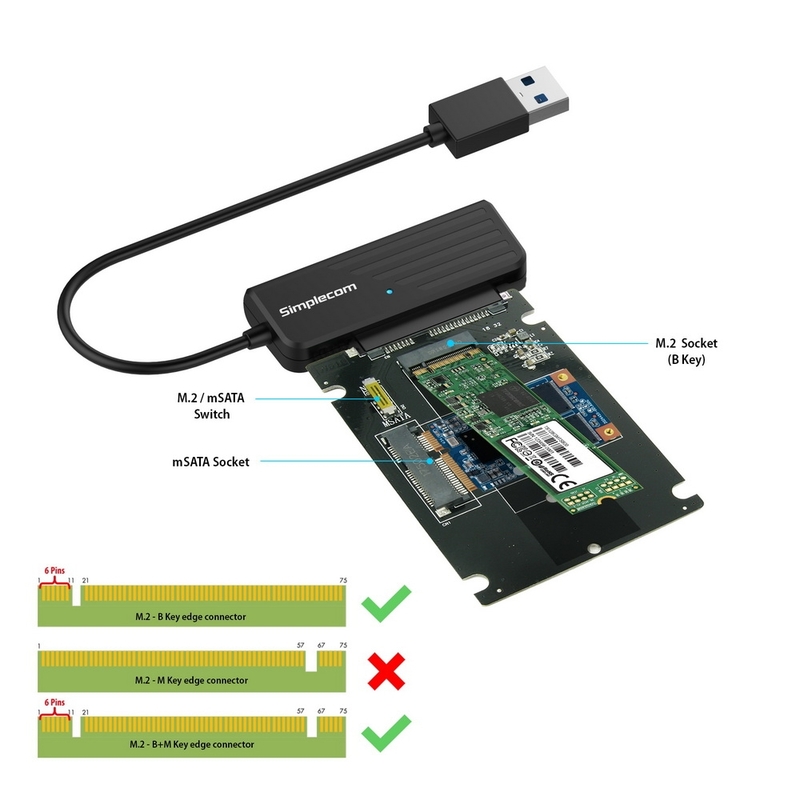

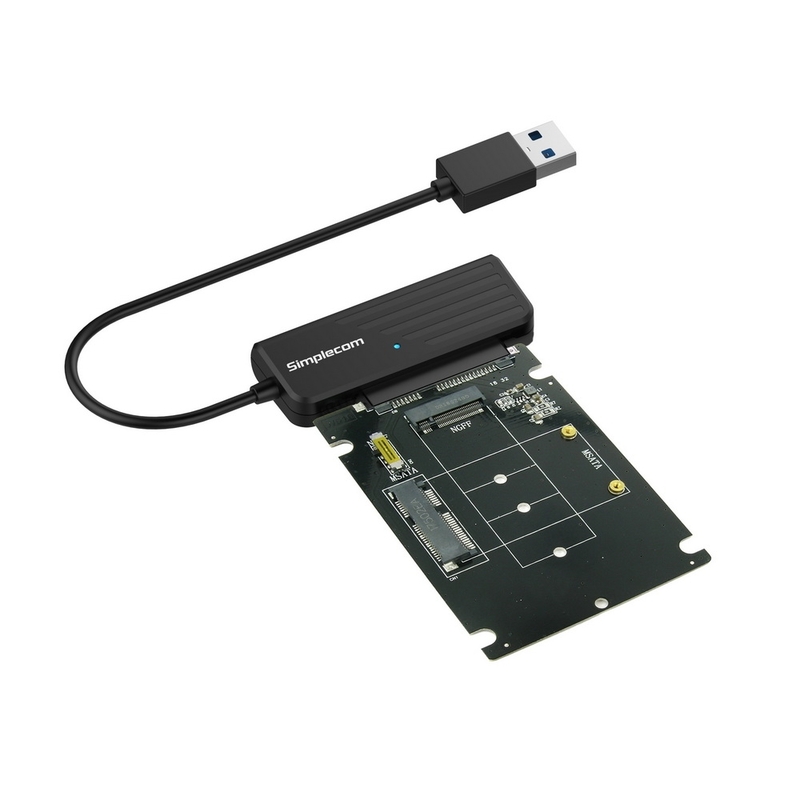

SA225 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to USB 3.0 interface. With this adapter, you can easily access M.2 or mSATA SSDs via standard USB port on PC, also you can install this adapter to SATA port after detached the USB cable. It’s an ideal solution for data backup and migration.

Features

  • mSATA + M.2 SSD 2 in 1 Combo Adapter
  • Convert a mSATA or M.2 SSD to USB 3.0
  • On board mSATA and M.2 Switch
  • Detachable USB 3.0 cable
  • USB 3.0 (USB3.1 Gen 1) interface up to 5Gbps data transfer rate
  • Plug and play, no drivers required
  • Compatible with Windows 7 and above, Mac OS 10.6 and above

Specifications

  • Circuit board Size: 97x65x5mm
  • Support following form factor M.2(NGFF) SSD:
    • Type 2230-D2-B-M: 30mm(L) x 22mm(W)
    • Type 2242-D2-B-M: 42mm(L) x 22mm(W)
    • Type 2260-D2-B-M: 60mm(L) x 22mm(W)
    • Type 2280-D2-B-M: 80mm(L) x 22mm(W)
  • Support following form factor mSATA SSD:
    • Full size mSATA : 50.95mm(L) x 30mm(W)

Package Contents

  • 1x mSATA + M.2 SSD 2 in 1 Combo Adapter
  • 1x USB 3.0 Cable
  • 1x Screw Driver
  • Screws with Washer



Important Note:

*NOT Designed for NVMe PCIe M.2 SSD, will not fit M Key Only SSD Module. Compatible with SATA protocol based mSATA and M.2 (B Key Only or B+M key) SSD only.
