Description
FEATURES
  • 80 PLUS® Gold certified
  • Compact Size - 140 mm deep
  • Tight Voltage Regulation
  • Cable-free Connection Design
  • S3FC - Fanless until 30 % load
  • Multi-GPU setup
  • Gold plated connectors

  • SPECIFICATIONS

    Technical Specifications

    80PLUS ®

    Gold

    Cybenetics Efficiency Level

    TBA

    Cybenetics Noise Level

    TBA

    Form Factor

    Intel ATX 12 V

    Dimensions

    140 mm (L) x 150 mm (W) x 86 mm (H)

    Fan Information

    Fan Size

    120 mm

    Fan Control

    S3FC - Fanless until 30 % load

    Fan Bearing

    Fluid Dynamic Bearing

    Life Expectancy

    50,000 hours at 40 °C, 15 % - 65 % RH

    Cable Information

    Modularity

    Fully Modular

    Cable type

    Flat cables

    Electrical Features

    Operating Temperature

    0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

    MTBF @ 25 °C, excl. fan

    100,000 hours

    AC Input

    Full Range

    Protection

    OPP, OVP, UVP, OCP, OTP, SCP

    Safety and Environmental

    Safety and EMC

    cTUVus, TUV, CB, CCC, BSMI, EAC, CE

    Environmental Compliance

    Energy Star, RoHS, WEEE, ErP Lot 6, REACH

    Warranty

    10 Years


    Power Output

    AC Input

    Voltage: 100 V - 240 V

    Current: 12 - 6 A

    Frequency: 50 Hz - 60 Hz

    DC Output

    Rail

    +3.3 V

    +5 V

    +12 V

    -12 V

    +5 VSB

    Maximum Power

    20 A

    20 A

    70 A

    0.3 A

    3 A

    100 W

    840 W

    3.6 W

    15 W

    Total continuous power

    850 W

    Pickup & Delivery
    • You are most welcome to collect your order from our warehouse at 1/191 The Horsley Drive Fairfield NSW 2165 (Entry from Tangerine Street).
    • You need to place your order online first and make sure you have received confirmation that your order is ready for pick-up before coming in. Please note that we require up to 2-3 business days to process your order.
    • Free shipping is only available to select post codes and may not include certain far regional areas, to check eligibility enter post code into shipping calculator.
    • Provide us with your correct delivery address and contact details
    • Please make sure someone is at home from 7 am - 7 pm on the delivery day. if you believe an alternative address is more convenient to deliver the item then please make sure you change the address at eBay checkout.
    • Delivery guy will require an assistant to unload heavy items of his vehicle. Our delivery guys only deliver at property entrance on ground level.
    • We do not ship to PO boxes and surrounding islands.

    For all metropolitan areas allow between 2-7 working days for delivery and for all non-metropolitan areas allow between 5-10 working days.

    After ordering online, you will receive an email confirmation from Bargains Online containing your receipt of payment details (if you have provided your email address). We will also normally confirm receipt of your order soon after ordering.

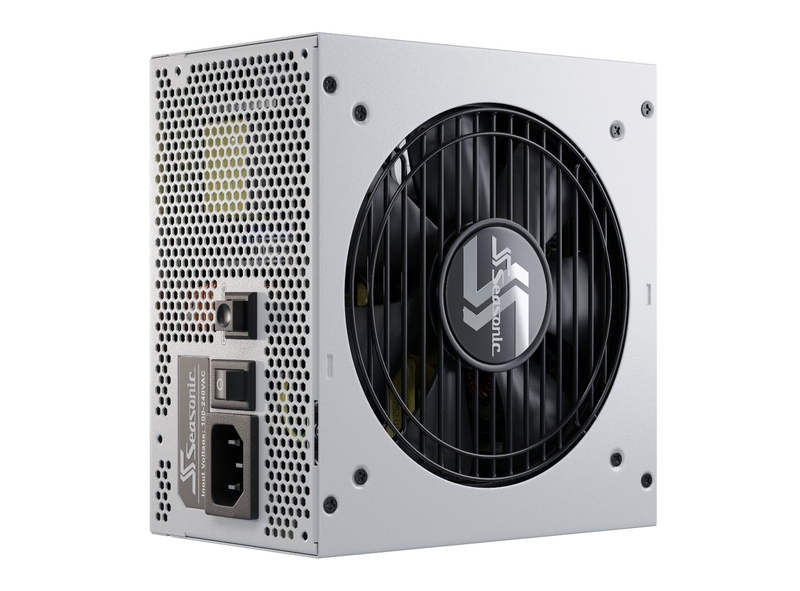

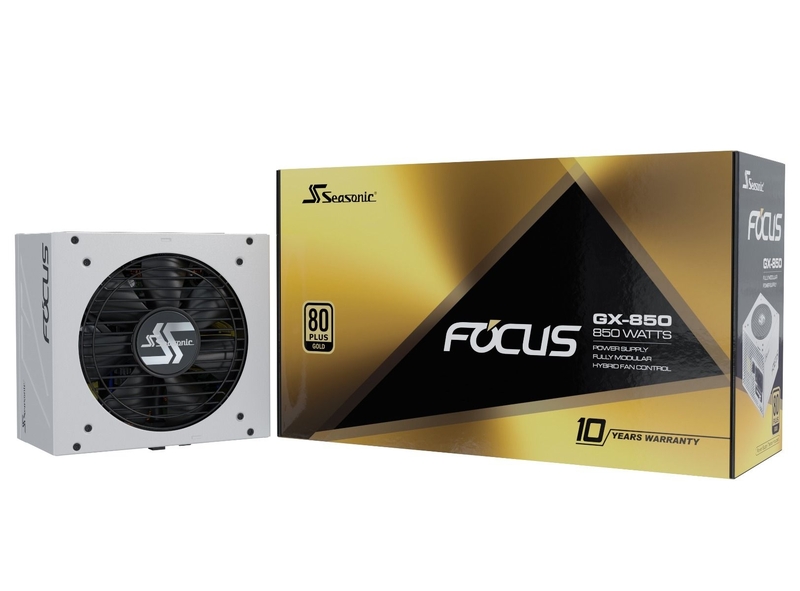

    Seasonic FOCUS GX-850 White 850W ATX 3.0 Gold Modular PSU

    Don't Pay $542.00
    $360.00
    SAVE $182
    30 - 0 > 0 AND 0

    Please note this item is not available for pick up

    SKU: BO20-DS-102010
