SKU: BO20-DS-92105
Description
FEATURE SUMMARYATX 3.0 and PCIe 5.0 Cable (12VHPWR) 80 PLUS® Gold certified Compact Size - 140 mm deep Top-Quality 135 mm FDB Fan Digital Hybrid Fan Control S3FC - Fanless until 30% load Cable-free Connection Design Tight Voltage Regulation Gold plated connectors 10 years warranty
| Technical Specifications | ||
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel ATX 12V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | S3FC - Fanless until 30% load | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40°C, 15% - 65% RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50°C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
Current: 13 - 6.5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power | 25 A | 25 A | 83 A | 0.3 A | 3 A | |
125 W | 996 W | 3.6 W | 15 W | |||
Total Continuous Power | 1000 W | |||||
Pickup & Delivery
- You are most welcome to collect your order from our warehouse at 1/191 The Horsley Drive Fairfield NSW 2165 (Entry from Tangerine Street).
- You need to place your order online first and make sure you have received confirmation that your order is ready for pick-up before coming in. Please note that we require up to 2-3 business days to process your order.
- Free shipping is only available to select post codes and may not include certain far regional areas, to check eligibility enter post code into shipping calculator.
- Provide us with your correct delivery address and contact details
- Please make sure someone is at home from 7 am - 7 pm on the delivery day. if you believe an alternative address is more convenient to deliver the item then please make sure you change the address at eBay checkout.
- Delivery guy will require an assistant to unload heavy items of his vehicle. Our delivery guys only deliver at property entrance on ground level.
- We do not ship to PO boxes and surrounding islands.
For all metropolitan areas allow between 2-7 working days for delivery and for all non-metropolitan areas allow between 5-10 working days.
After ordering online, you will receive an email confirmation from Bargains Online containing your receipt of payment details (if you have provided your email address). We will also normally confirm receipt of your order soon after ordering.

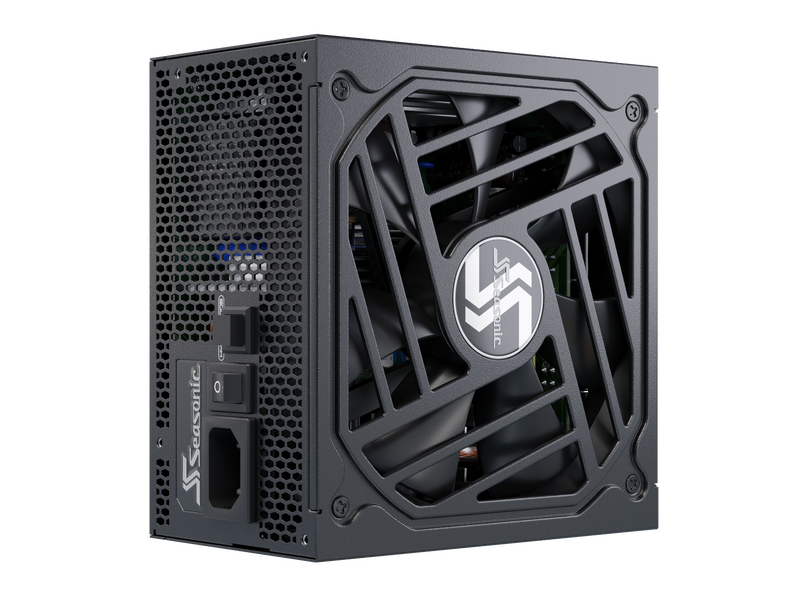

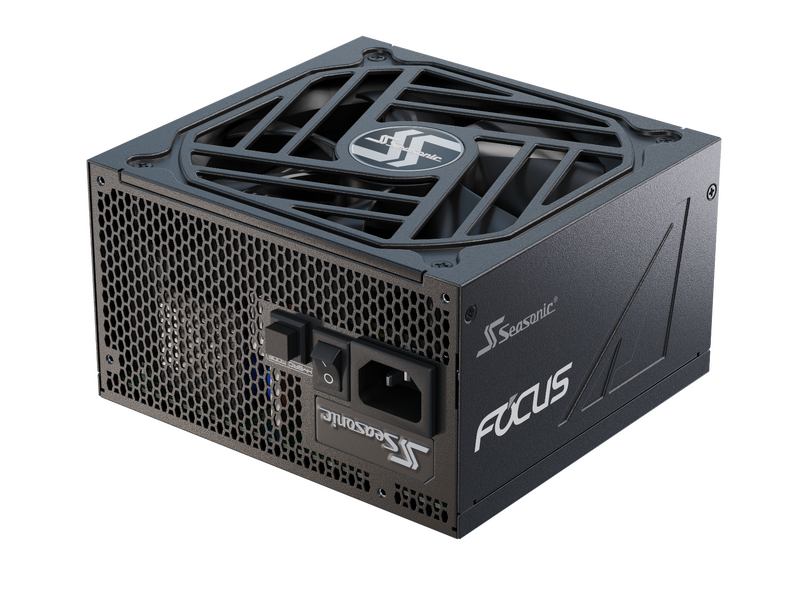

Seasonic FOCUS GX-1000 ATX 3.0 1000W Gold PSU (SSR-1000FX3)
Don't Pay $661.00
$439.00
SAVE $222
- Out Of Stock
