- Specification compliance: Intel EPS12V
- Forward converter circuit
- High efficiency and reliability for industrial level
- Easy swap connector design
- High reliability ball bearing fan
- Low ripple & noise
- Smart & Silent Fan Control (S2FC)
- Zero minimum load on 3.3V rail
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
- PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards
Dimension: L235 x W100 x H40mm
(9.3 x 3.9 x 1.6 )
Fan type: 38 x 38mm
- Input frequency: 50 / 60 Hz
- Inrush current, cold start: 100A max.
- Efficiency, 220-240VAC, full load: 83% typical
- Efficiency, 100-120VAC, full load: 80% typical
- Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
- Dielectric withstand, input to output: 1800VAC, 1sec.
- Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple / noise: 1%
- MTBF, full load@25℃ amb. : >100K hours
(Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
Safety: CUL, TUV, CB, CCC, BSMI
EMC: CE, FCC, C-tick
- You are most welcome to collect your order from our warehouse at 1/191 The Horsley Drive Fairfield NSW 2165 (Entry from Tangerine Street).
- You need to place your order online first and make sure you have received confirmation that your order is ready for pick-up before coming in. Please note that we require up to 2-3 business days to process your order.
- Free shipping is only available to select post codes and may not include certain far regional areas, to check eligibility enter post code into shipping calculator.
- Provide us with your correct delivery address and contact details
- Please make sure someone is at home from 7 am - 7 pm on the delivery day. if you believe an alternative address is more convenient to deliver the item then please make sure you change the address at eBay checkout.
- Delivery guy will require an assistant to unload heavy items of his vehicle. Our delivery guys only deliver at property entrance on ground level.
- We do not ship to PO boxes and surrounding islands.
For all metropolitan areas allow between 2-7 working days for delivery and for all non-metropolitan areas allow between 5-10 working days.
After ordering online, you will receive an email confirmation from Bargains Online containing your receipt of payment details (if you have provided your email address). We will also normally confirm receipt of your order soon after ordering.

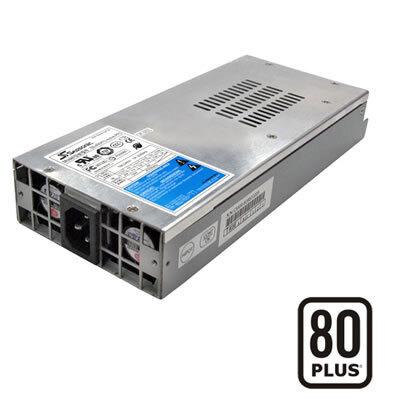

SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U)
- In Stock
