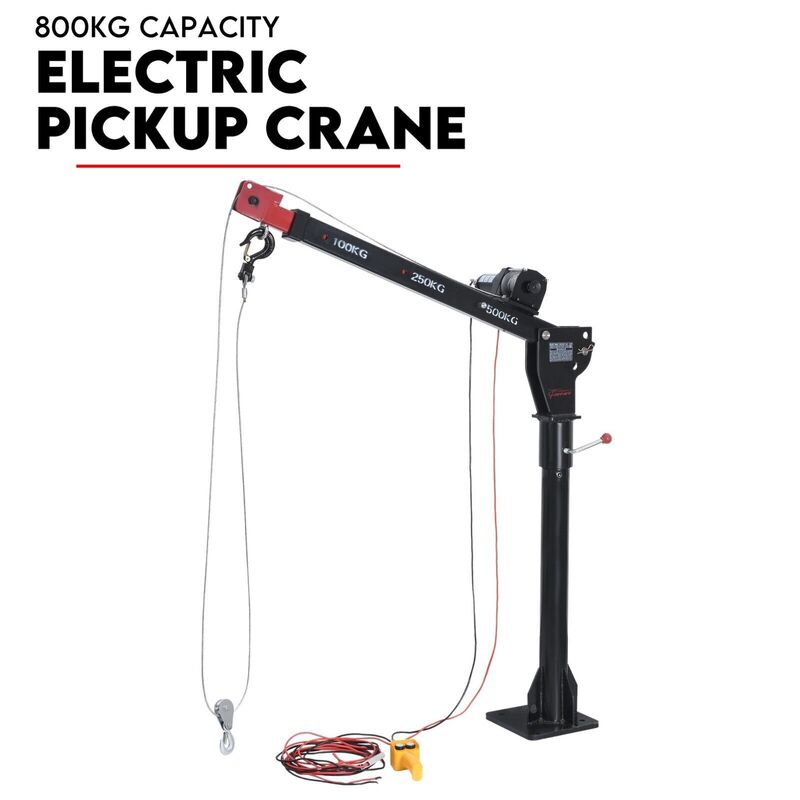

Perfect tool for landscapers, tree surgeons, builders and farmers lifts up to a maximum 3000lb with the wire cable winch.
The crane is extremely versatile for many lifting situations - with the crane being detachable from the base for security reasons. It can even be mounted on your van or trailer body to allow the easy on/off lift of heavy items.
The uses for this fantastic crane are endless. A local tree surgeon has his mounted in the center of his trailer allowing him to load bulk bags of logs and the other at the headboard of his tipping van body allowing him to lift heavy equipment on and off by himself.
The swivel crane hoist has a small footprint, with a base that only takes up 250 mm x 250 mm of space.
Features:
- Load capacity up to 800 kg
- Lightweight portable design for mounting into ute??, service bodies, vans, loading docks, platforms etc

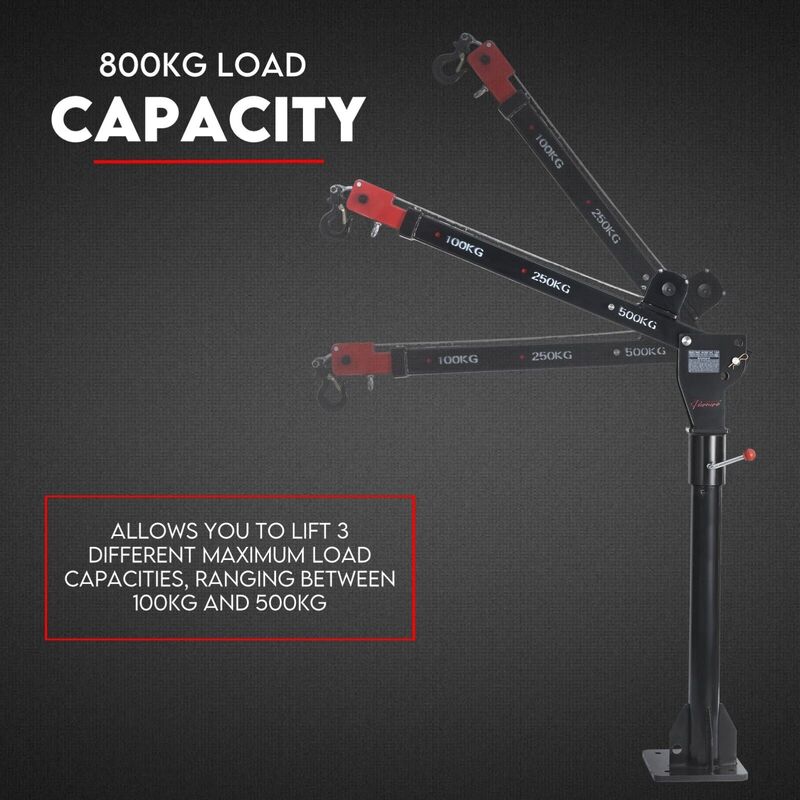

- Swivel crane hoist's boom extension locks in 3 positions (100KG, 250KG and 500KG)
- Loading hook with chain

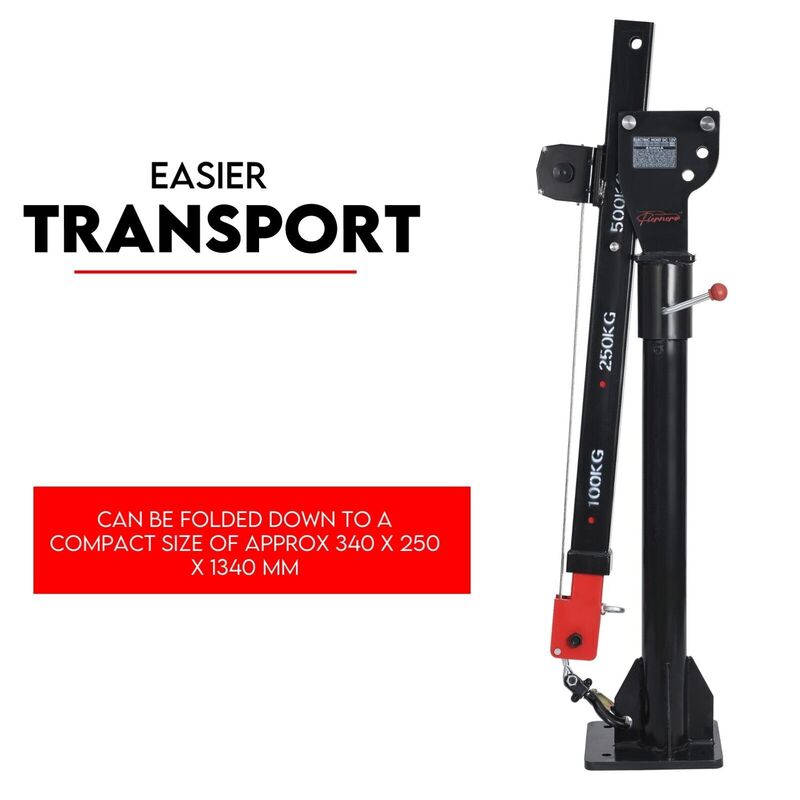

- Collapsible

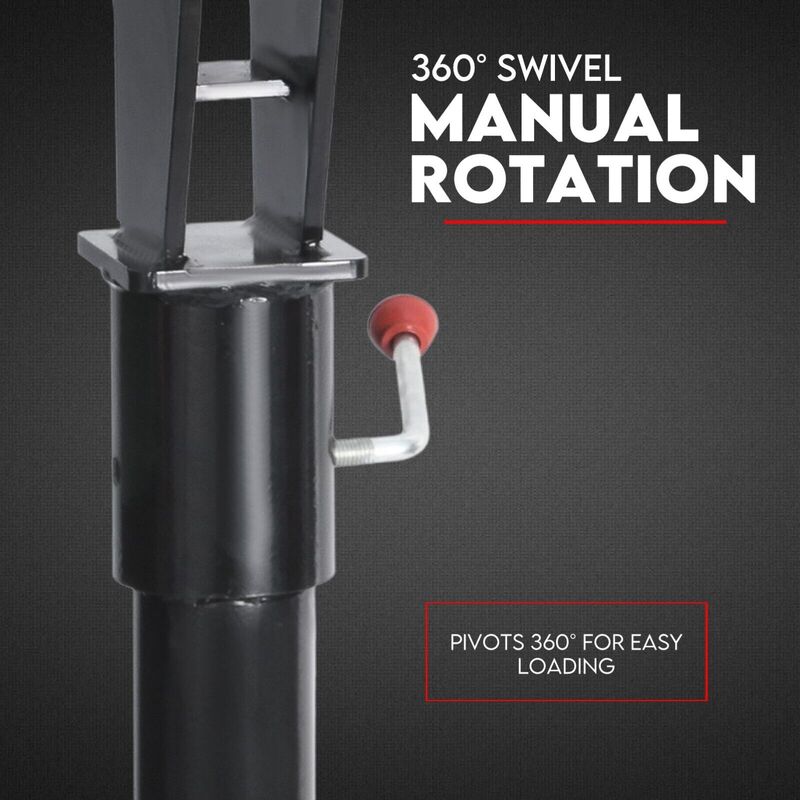

- 360? swivel design allows for maximum accessibility
- Rugged heavy-duty construction ensures long term durability
SPECIFICATIONS
- Capacity - Single Line 500 kg / 1102 lb
- Capacity - Double Line 800 kg / 1763 lb

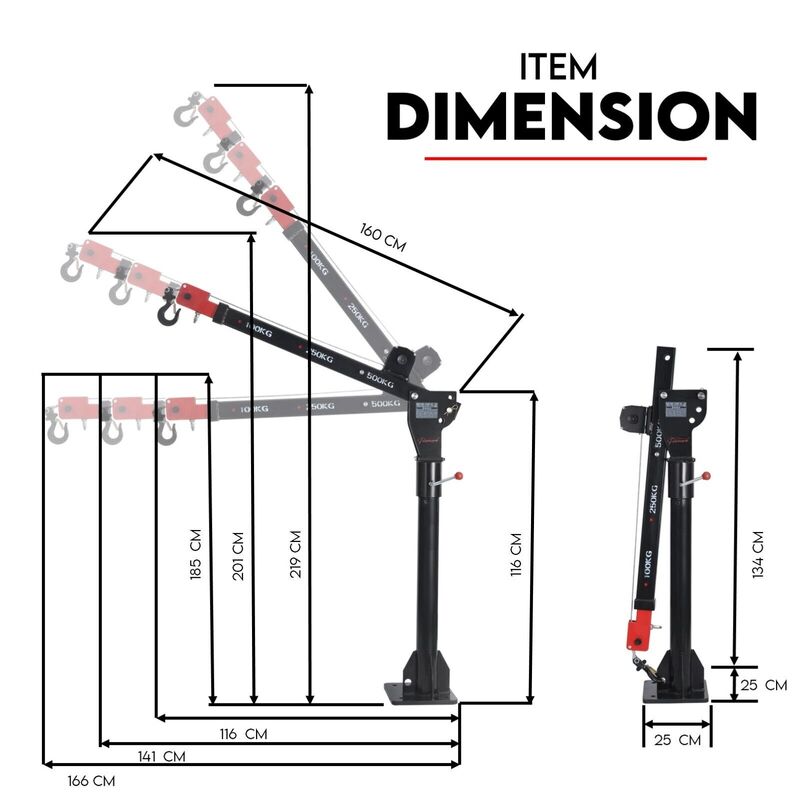

- Maximum Height (Base to Hook) 1940 mm
- Maximum Reach 1490 mm
- Lifting Cable 4.8 mm * 4.5 m
- Power Requirements 12V DC 125 A
- Switch Cable 4.2 m

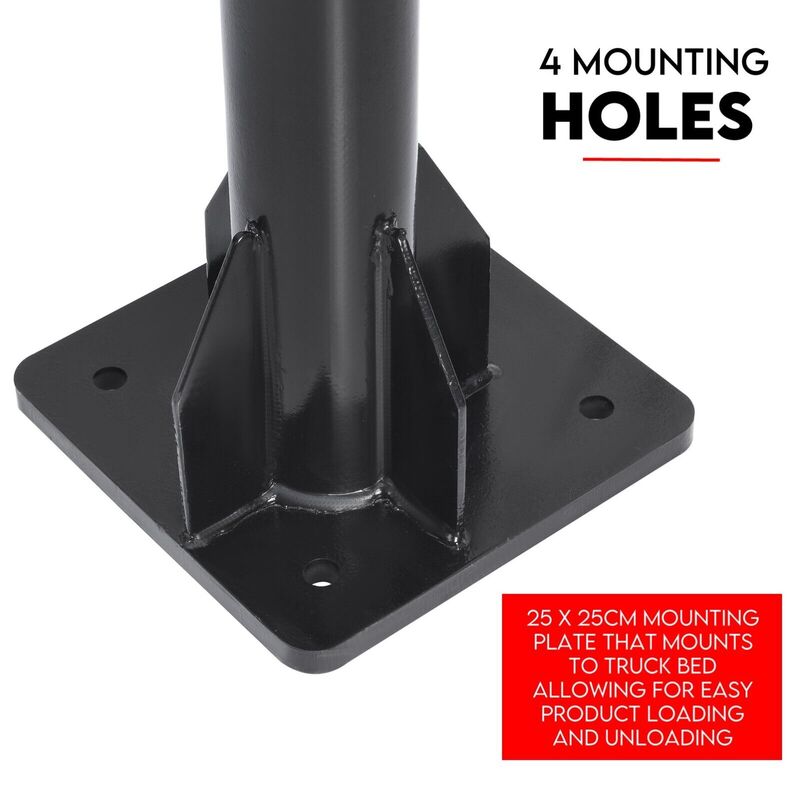

- Mounting Base Size 250 * 250 * 18 mm
- Mounting Bolt Hole Pattern 170 * 170 mm
In the Box
- 1 - Pickup Crane Set

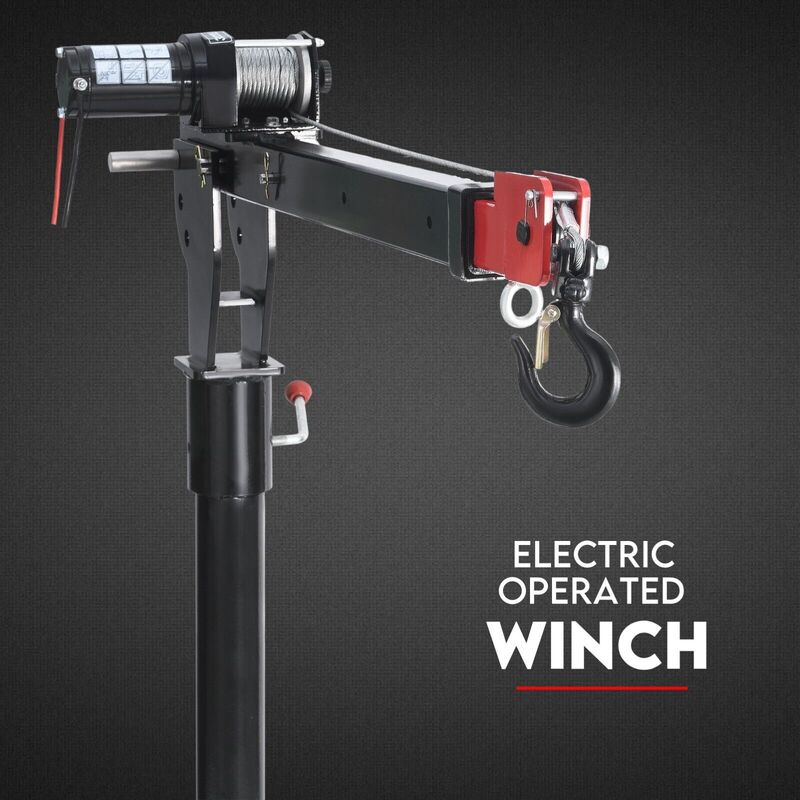

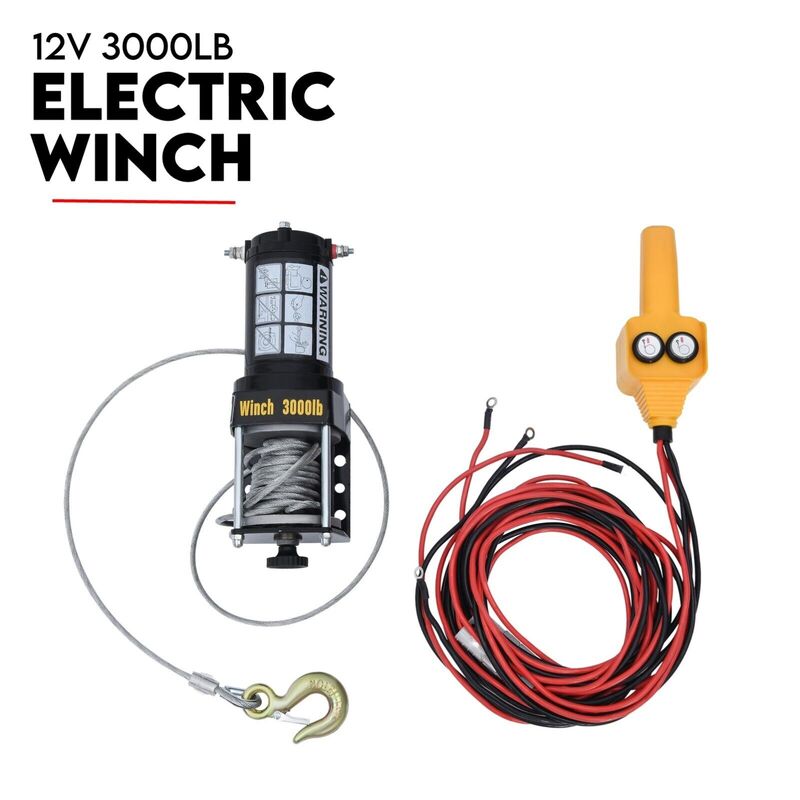

- 1 - Electric Winch
- 1 - Manual
Electric chain hoists help lift or lower heavy materials. The electric motor and controller are used to deploy lift, lower, accelerate or decelerate the speed of the hoist. Our hoisting lifting crane is a quality product that provides true vertical lift.
An electric winch crane is a piece of very innovative equipment used to lower and lift heavy loads commonly used for factories, plants, construction areas, and warehouses. The crane spares you stress, time and hassle in raising heavy items due to its efficiency and capacity.
